Sheet metal thickness cost is driven by material weight, machine tooling, labor hours, and finishing. Thicker gauges increase material spend and press tonnage. Thinner gauges can raise bending and welding labor. A clear RFQ specifying gauge and tolerance makes quotes comparable.
- Material cost scales directly with sheet metal thickness cost, while labor shifts based on required tonnage and fixturing.
- Thin gauges often cost more in labor due to bending, welding, and distortion control.
- Thick gauges demand high-tonnage presses and may extend the fabrication timeline.
- Specify gauge, tolerance, and surface finish in your RFQ to compare quotes fairly.
- Design for manufacturability reduces both price and delivery risk.
Sheet metal thickness is one of the first variables a fabricator sees when pricing a job. It changes the material bill, the machines required, and the hours on the floor. A procurement manager can reduce surprise by understanding how gauge drives cost and how those variables feed into lead time.
How material cost changes with gauge
Steel and aluminum sheet metal are usually sold by weight. A thicker gauge means more metal per square foot, so the material line item rises quickly. For a large panel, the difference between a 14 gauge and an 18 gauge sheet can be significant. The fabricator adds a cutting loss factor on top of the raw weight. That loss factor depends on nesting efficiency, which changes with part geometry.
When nesting a complex assembly, the fabricator arranges multiple parts on a single sheet. If the parts have sharp corners or irregular shapes, material waste increases. A flat gasket or a large flange nests tightly with little waste. A collection of small brackets with sharp angles may leave gaps that are too small to use. The cutting loss factor accounts for this waste. For a job with many small parts, the loss factor might be higher than for a job with a few large panels.
Thin gauges are lighter, but they are not always cheaper to buy. Some suppliers stock certain gauges more readily than others. If a requested thickness is out of stock, the fabricator may source from a secondary supplier or wait for a mill shipment. That substitution can add cost and delay.
Aluminum sheet behaves differently than steel in terms of availability. Aluminum mills often produce standard thicknesses that differ slightly from steel standards. A 0.032 inch aluminum sheet may be harder to source than a 0.032 inch steel sheet because the alloy specifications and rolling processes vary. Procurement teams should verify that the requested thickness is standard for the specific alloy before finalizing the design.
How labor cost shifts with thickness
Labor is where thickness has the most complex effect. Thicker sheet requires more press tonnage. A 20 gauge panel may bend on a standard brake, but a 5/16 inch plate may need a high-tonnage hydraulic press. Those machines are fewer, and their operator hours may cost more. Setup time increases because tooling and fixtures must be adjusted for the heavier workpiece.
Press tonnage is measured in tons and determines the force the machine can apply. A standard mechanical brake might handle up to 100 tons, while a hydraulic press can reach several hundred tons. Using a high-tonnage machine for a job that does not require it is inefficient, but using a low-tonnage machine for heavy plate will not produce the desired bend. The fabricator must match the machine capacity to the material thickness and the bend radius.
Thin gauges create a different labor profile. They are easier to bend, but they are more likely to spring back. They also wrinkle if the brake pressure is not controlled. Welding thin sheet requires lower heat input and more attention to distortion. If the part needs a smooth surface, the fabricator may need extra grinding or finishing passes.
Springback is the tendency of the metal to return to its original shape after bending. The thinner the gauge, the greater the springback. To compensate, the fabricator must over-bend the part slightly. This requires precise setup and careful monitoring. If the operator underestimates the springback, the part will come out of the brake with an angle that is too shallow. Correcting this requires re-bending or rework, which adds labor.
Welding thin sheet is tricky because the heat can burn through the material or warp the joint. The welder must use low amperage and short pulses. This slows the welding speed. Thick sheet, on the other hand, requires higher amperage and more travel time to ensure penetration. The labor cost reflects this difference in technique and speed.
How thickness affects the fabrication timeline

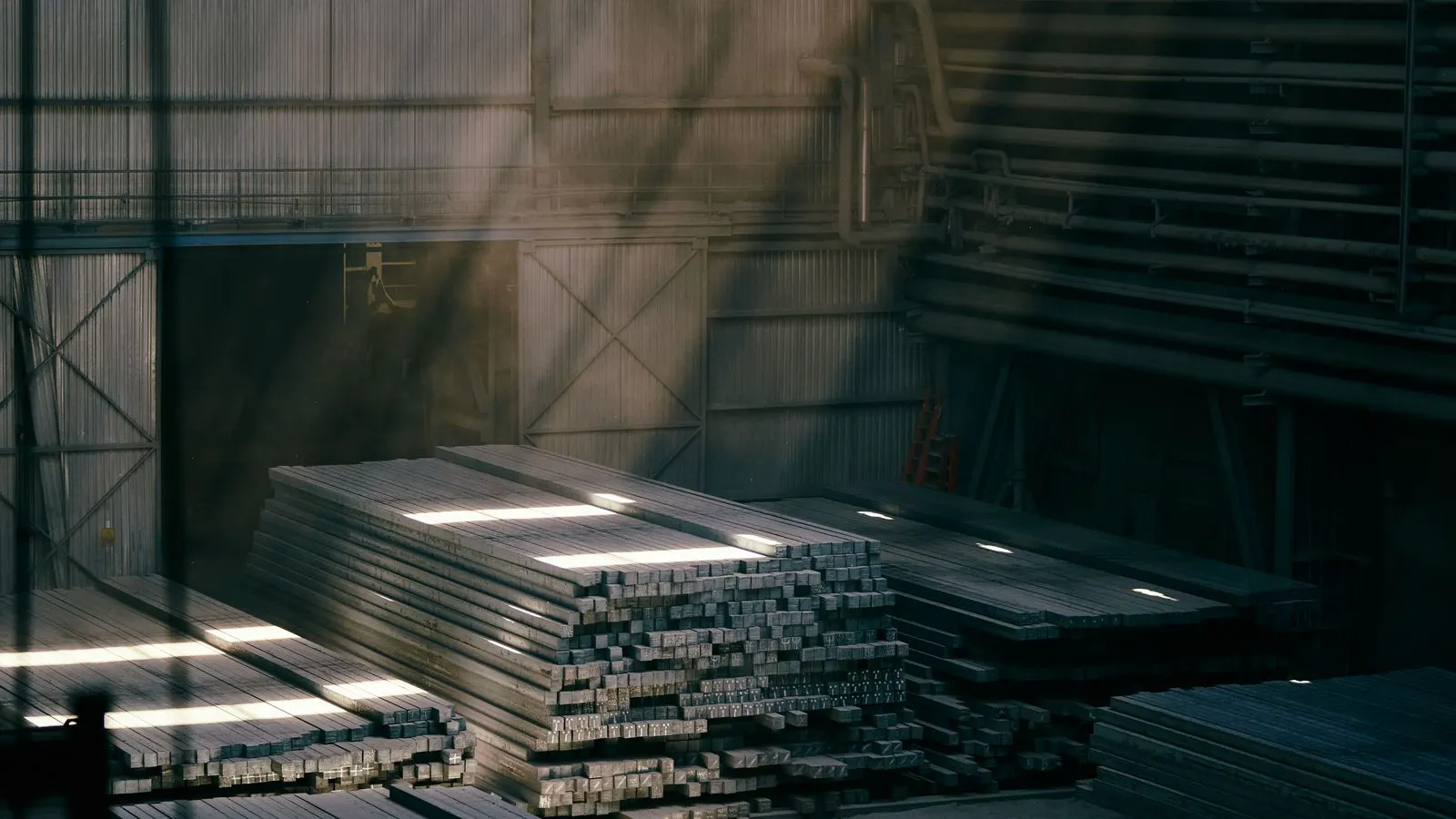

Lead time is not just the time a part spends in a machine. It is the sum of material procurement, setup, machining, assembly, and inspection. Thick material often has longer material lead times because mills produce it in larger batches. If the sheet is out of stock, the timeline extends until the next shipment arrives.
Mill lead times vary by material and thickness. Standard thicknesses are usually available on a short notice, often within a week or two. Non-standard thicknesses may require a custom rolling order. This process can take several weeks. The fabricator cannot start the job until the material arrives. Any delay in material delivery pushes the entire production schedule back.
Thin material is usually easier to source, but the timeline can still stretch if the part requires complex welding or tight tolerances. A bracket with three thin-walled legs may take longer to weld and straighten than a flat plate with one bend. The fabrication timeline depends on how the thickness interacts with the rest of the design.
Inspection also takes longer with thin gauges. Visual inspection is harder when the metal is thin because scratches and dents are less visible. The fabricator may need to use tactile inspection or even X-ray testing to verify weld quality. This adds hours to the timeline. Thick material is more forgiving, but it requires dimensional checks to ensure the bends are accurate.
How to write a clear RFQ for thickness
A vague RFQ creates a vague quote. If you ask for “light gauge” without specifying a number, the fabricator must assume a thickness. That assumption may be wrong. State the gauge or the decimal thickness in the drawing or the specification. Include the material grade, the surface finish, and the bend tolerance.
Drawings should show the thickness as a note or in the title block. If the thickness varies across the part, indicate each section explicitly. For example, a cover might have a 0.032 inch face and a 0.050 inch rim. This level of detail prevents ambiguity.
If the thickness can vary, say so. A tolerance of plus or minus 0.005 inch is a specific instruction. It tells the fabricator how much material to buy. It also tells them whether a 0.032 inch sheet is acceptable or if they must source 0.033 inch. This level of detail reduces the chance of a second quote or a change order later.
Specify the material grade as well. Grade 1018 steel and grade 304 stainless steel have different properties and costs. The grade affects the bend radius and the weldability. A vague request for “steel” allows the fabricator to choose the cheapest available grade, which may not meet the performance requirements.
How to compare quotes fairly
Do not compare a quote line item called “material” without looking at the thickness. Two quotes for the same part may use different gauges if the original drawing did not specify one. One quote may use a thicker sheet to meet a deflection limit, while another uses a thinner sheet with a different rib pattern.
Look at the labor breakdown. A quote that separates bending, welding, and finishing makes it easier to see where thickness adds cost. A quote that bundles everything into one “fabrication” line hides the trade-offs. Ask for a breakdown. Ask for the press tonnage used. Ask for the estimated hours per operation.
The quote should reflect the specific thickness chosen. If one quote uses 0.032 inch sheet and another uses 0.040 inch sheet, the material costs will differ. The labor costs will also differ because 0.040 inch sheet requires more press tonnage and setup time. Comparing the total price without understanding the thickness difference leads to incorrect conclusions.
How design choices affect cost
The thickness you choose should match the part function. A part that does not need high load capacity does not need a heavy gauge. Over-specifying thickness increases material cost and can make the part heavier to handle on the floor. Under-specifying leads to deflection, corrosion, or failure.
Design for the fabrication process. A part with many thin bends may be cheaper to manufacture than a part with one thick bend, even if the material weight is similar. The number of setup changes matters. If a part requires a different press for each bend, the labor time increases. A part that can be bent on one machine with one setup is usually faster.
Consider the bend direction and the grain direction of the sheet. Bending perpendicular to the grain is often stronger than bending parallel to the grain. This may influence the thickness choice. A thinner sheet bent perpendicular to the grain may perform better than a thicker sheet bent parallel to the grain.
How to reduce lead time with thickness
Select a thickness that is in stock at the mill. Ask your supplier for the standard stock list before releasing the drawing. If you need a non-standard gauge, build extra time into the schedule. Do not assume the mill can ship a custom roll next week.
Use a design that minimizes the number of thickness changes. If a part has two sections of different thickness, it may require welding two different materials. That adds prep time. A single thickness is usually faster to process. If the design allows, use a thicker sheet for the whole part if the weight is acceptable.
How does sheet metal thickness cost affect my budget?
A: It changes the material bill directly and shifts labor between pressing, welding, and finishing. A thicker gauge raises material cost but may lower some labor times. A thinner gauge lowers material cost but may raise labor for distortion control.
Why do thin gauges sometimes cost more in labor?
A: Thin sheet is prone to springback, wrinkling, and warping. The fabricator must use lower pressure, more fixtures, and more inspection passes. Welding thin sheet also requires careful heat control to avoid burn-through.
What should I specify in my RFQ to avoid pricing surprises?
A: State the exact gauge or decimal thickness, the material grade, and the tolerance. If the thickness can vary, give the acceptable range. This prevents the fabricator from guessing and ensures the quote matches your design intent.
How does thickness impact the fabrication timeline?
A: Thick material often has longer mill lead times and requires high-tonnage presses. Thin material is easier to source but may take longer to weld and straighten. The timeline depends on how the thickness interacts with the part geometry.
Can I reduce cost by changing the thickness?
A: Yes, if the part function allows it. A lighter gauge may reduce material cost. A heavier gauge may reduce labor if it bends more predictably. Review the design with the fabricator before changing the gauge to ensure the change is safe and cost-effective.
